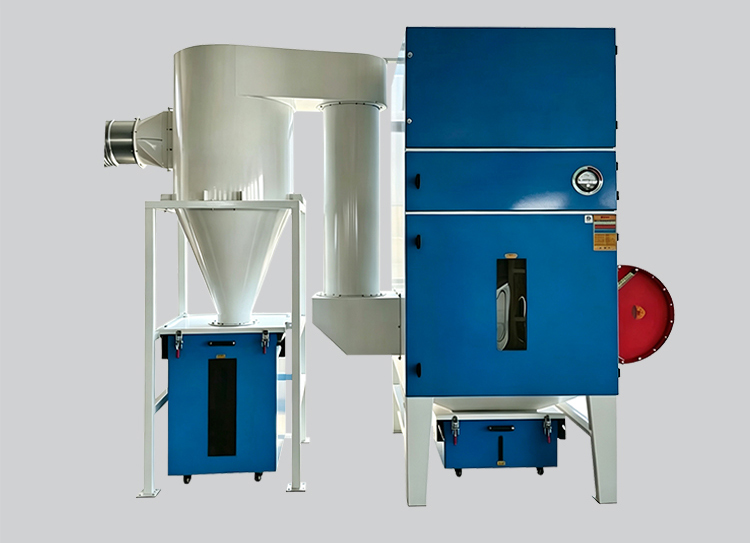

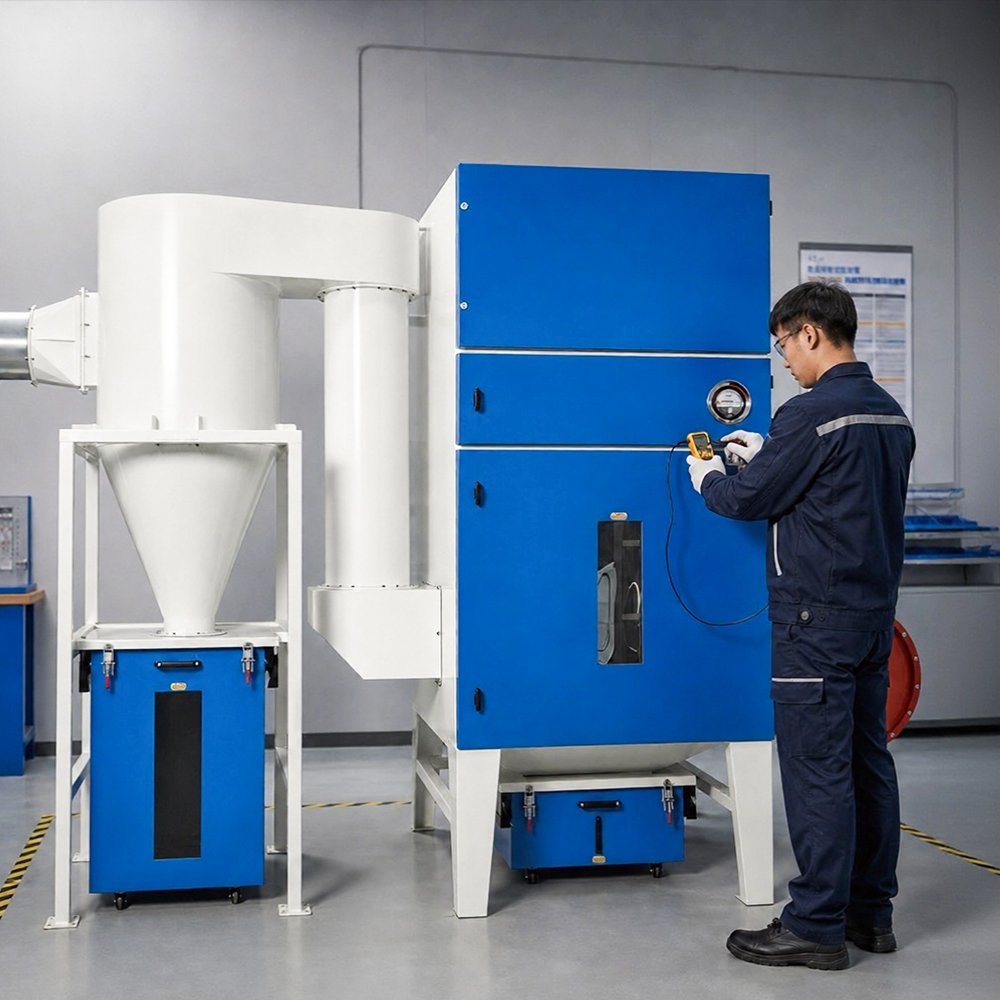

15kw Pulse Dust Collector
Installed beside CNC machining centers, edge banding lines, panel saws and sanding stations, the WFSEN 15 kW cyclone pulse dust collector captures sawdust, wood chips and fine dust directly at the source, keeping workshop air clean and floors safe for operators.
The cyclone pre-separator handles heavy dust loads from multiple machines, while automatic pulse jet cleaning keeps filtration stable throughout the working day — a reliable dust management solution for medium and large woodworking factories, furniture plants and CNC production workshops.

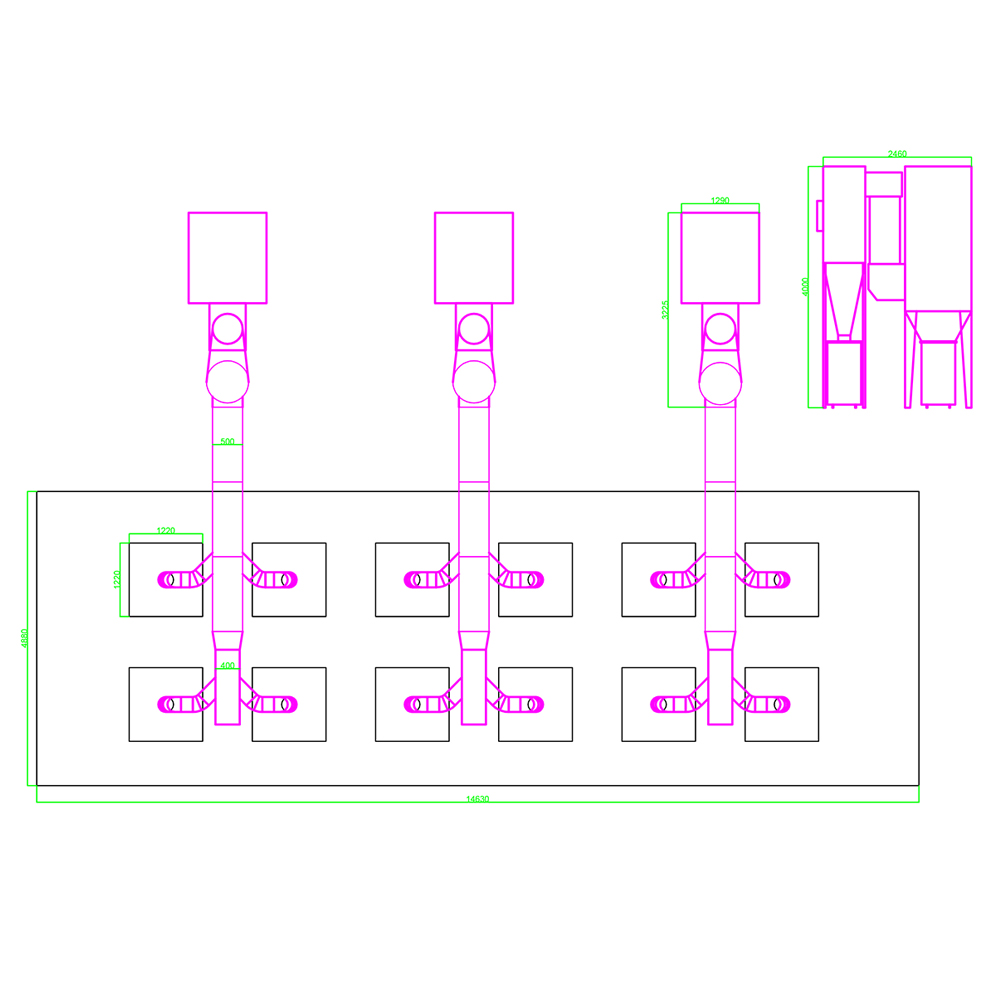

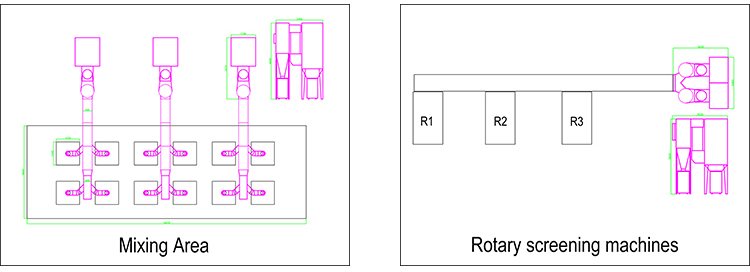

Mixing Area Layout Diagram Rotary Screening Area Layout Diagram

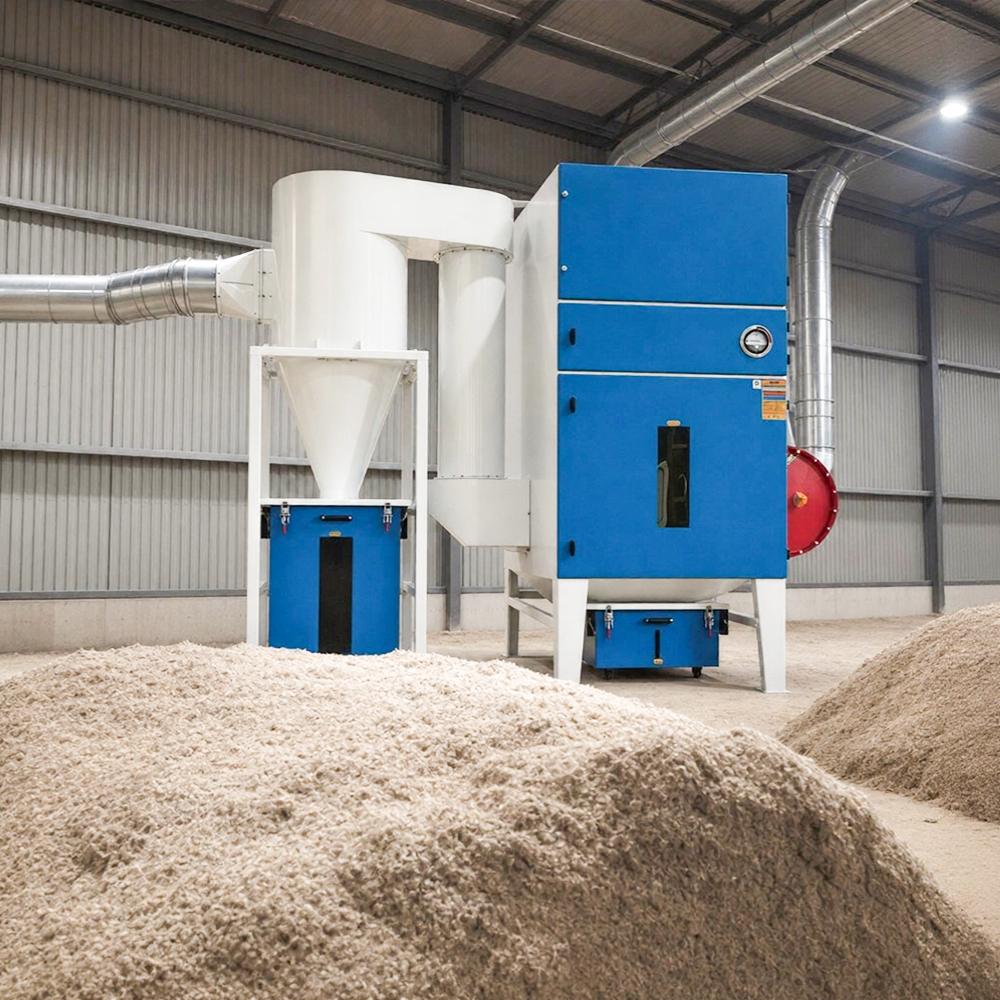

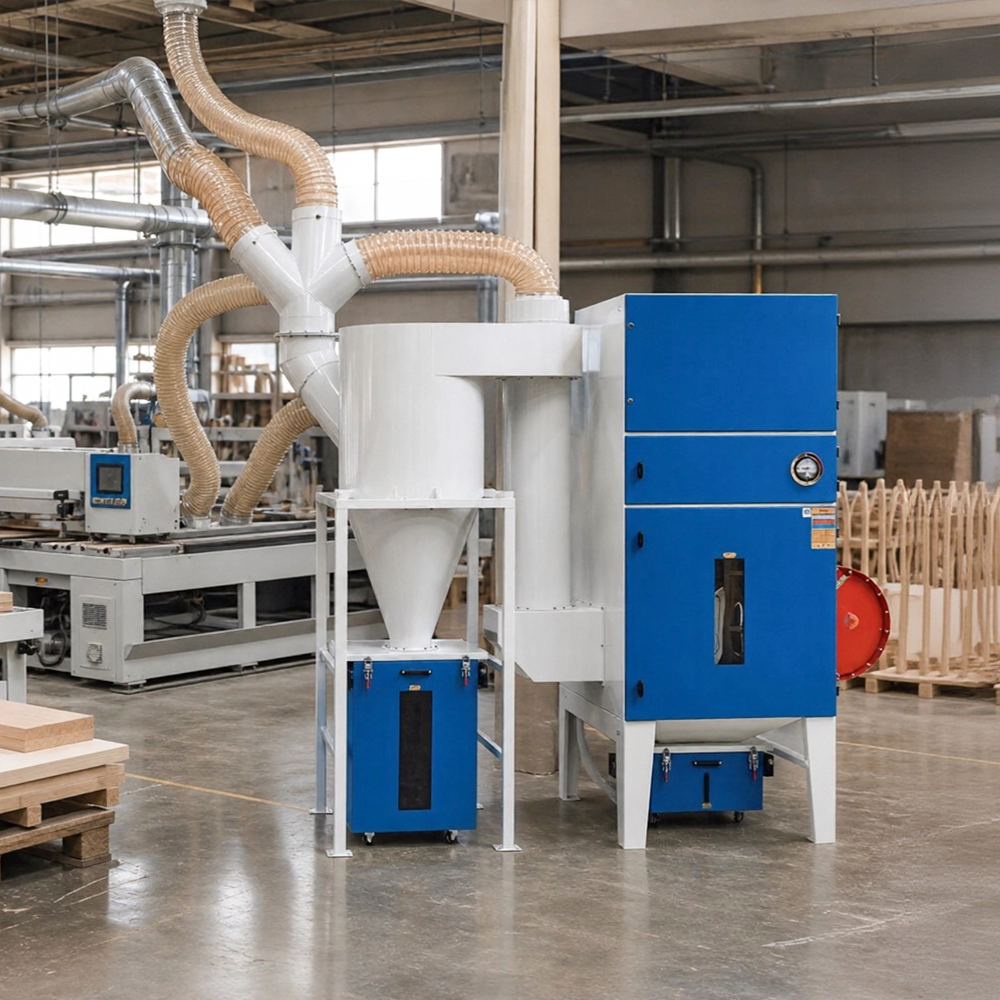

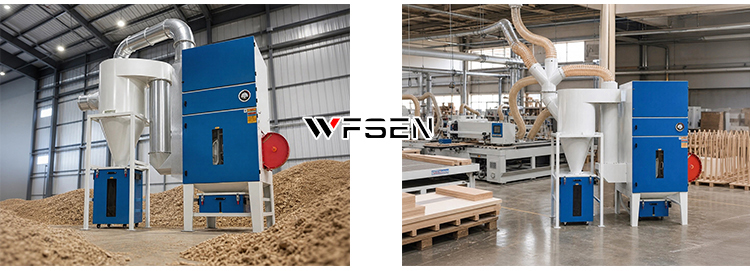

Workshop dust control Woodworking Dust Collection

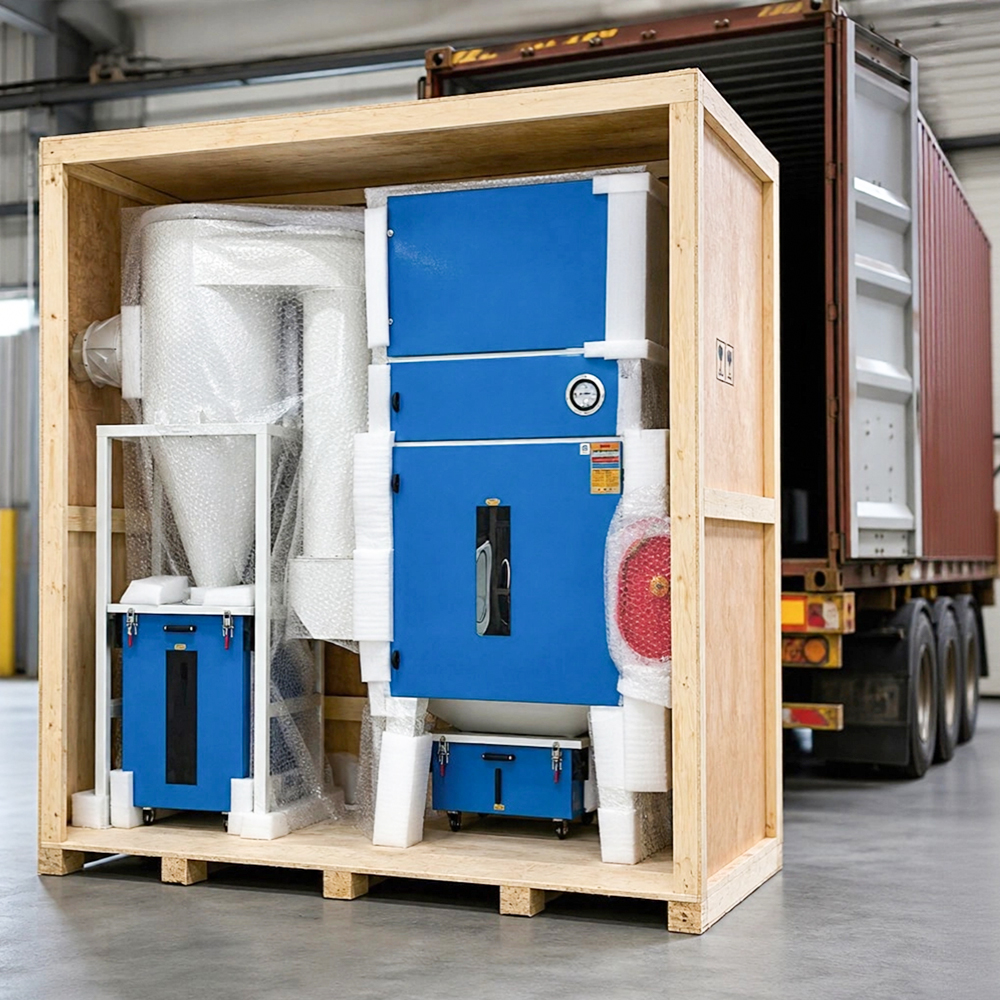

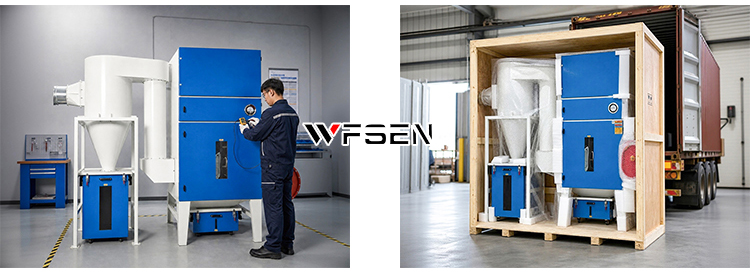

100% factory inspection ensures quality Export plywood crate with waterproof film
——— Technical Parameter
|
Model |
15kw Pulse Dust Collector |
Filter area |
96m² |
|
Fan motor power |
7.5kw |
Solenoid valve |
Impulse control |
|
Fan exhaust airflow rate |
14000 m3/h |
Cartridges |
32pcs |
|
Toner cartridge |
φ150*1000mm |
Room noise |
70 decibel |
|
Intelligent control |
Energy conservation 15~20 |
Distribution box |
Explosion-proof |
|
Overall size |
2630*2460*3600mm |
Dust collection bin |
735*570*1140mm |
——— Machine show

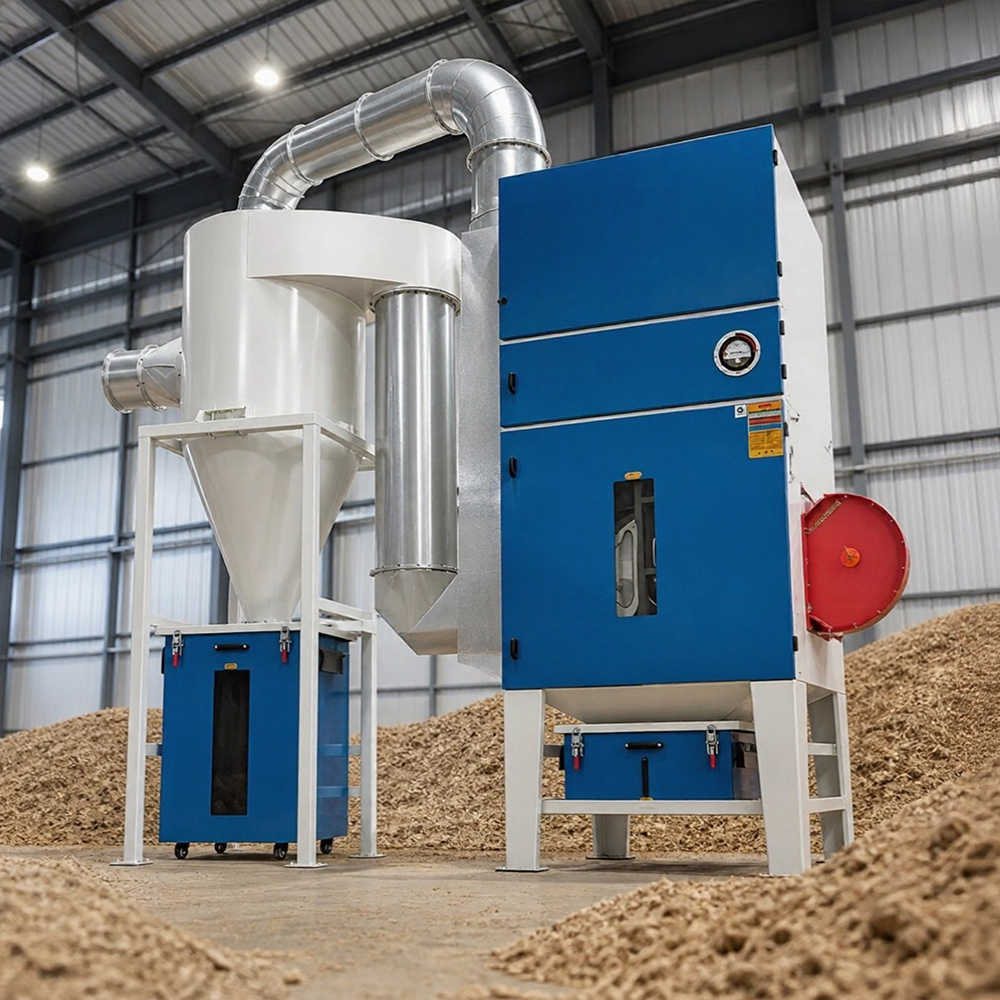

Pulse Dust Collector
Our Pulse Dust Collector & Cyclone Dust Collector serve as reliable Industrial Dust Extractor and complete Dust Collection System. Built‑in Automatic Pulse Cleaning ensures stable performance. This Heavy‑Duty cartridge dust collector fits woodworking, CNC router, metal grinding and laser cutting scenarios. As factory direct supply, we provide customized solutions with high‑efficiency air filtration for various industrial dust processing requirements.
