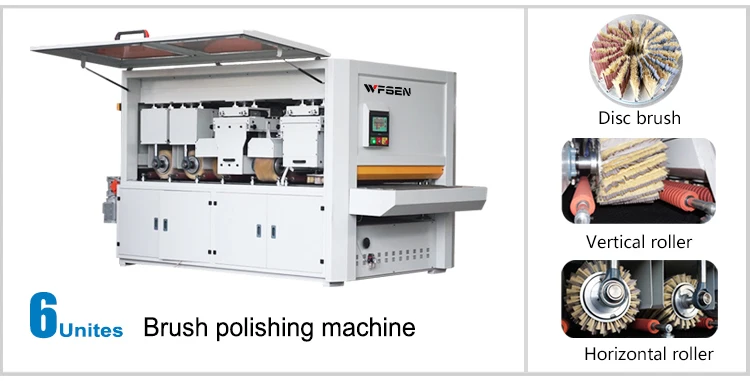

SK1300-6S wood brush polishing machine
Six independent polishing units, 1300 mm working width, 5–160 mm thickness, 5–18 m/min feed with frequency control. Each unit can be raised or lowered on its own.
14.47 kW total motor power, 4500 kg machine weight. Rexroth PLC, CHINT electrical components, marble work table. Built for door frames, mouldings, carved panels and MDF faces.
Technical Specifications
| Model | SK1300-6S | Disc swing power | 0.37 kW | |
| Max. working width | 1300 mm | Disc lifting power | 0.37 kW | |
| Max. working height | 5–160 mm | Vertical roller turn power, 9 pcs | 1.5 kW × 2 | |
| Separateness adjust height | 50 mm | Vertical roller swing power | 0.37 kW | |
| Feeding speed | 5–18 m/min | Vertical roller lifting power | 0.37 kW | |
| Total motor power | 14.47 kW | Horizontal roller turn power | 3 kW × 2 | |
| Feeding power | 2.2 kW | Horizontal roller lifting power | 0.37 kW × 2 | |
| Feeding plate lifting power | 0.55 kW | Over dimension | 3400 × 2100 × 2100 mm | |
| Disc turning power, 11 pcs | 1.5 kW | Weight | 4500 kg |
Where our catalogue gives the working width as 1300/1000 mm, the two figures are the two working widths the six-unit machine is offered in. The table above states the values for the 1300 mm build; for the 1000 mm build, ask us for the figures.
Ask us to check SK1300-6S against your panel size and profile — send us the drawing and we will tell you the unit count and brush layout you need.
Configuration and Working Range
Six units, each lifting on its own.
The six polishing units can be raised or lowered individually, so a door frame and a carved moulding can run in the same shift without changing tooling.
1300 mm wide, 5–160 mm thick.
Working width 1300 mm and working thickness 5–160 mm cover everything from thin veneered faces to 160 mm frames.
11 discs and 9 vertical rollers.
Disc turning power runs 1.5 kW across 11 discs, vertical roller turn power 1.5 kW × 2 across 9 rollers — the brush layout is what decides whether a carved edge comes out uniform.
5–18 m/min, frequency controlled.
Feed speed is adjustable from 5 to 18 m/min, so the same machine runs fast on flat panels and slow on deep profiles.
4500 kg on a 3400 × 2100 × 2100 mm footprint.
14.47 kW total motor power on a 4500 kg machine, with Rexroth PLC and CHINT electrical components.
Machine Structure

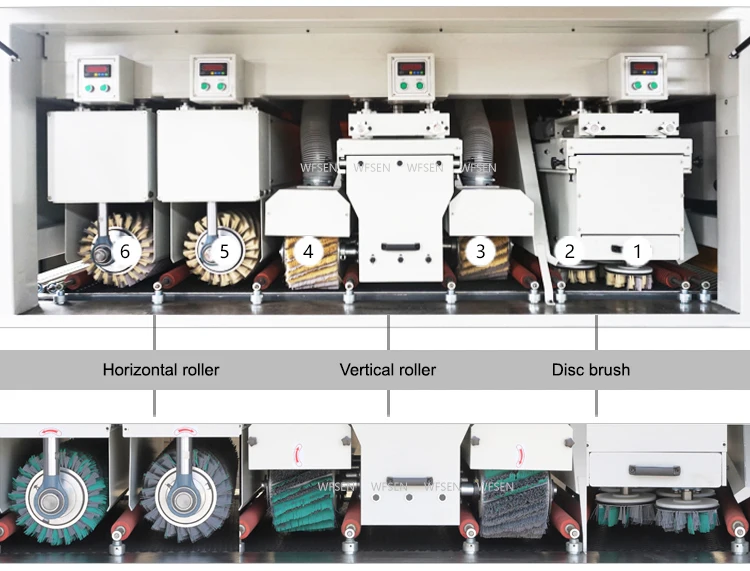

Inside the cabinet: six polishing heads — disc brushes, vertical rollers and horizontal rollers — each with its own drive and lift.
Key Components

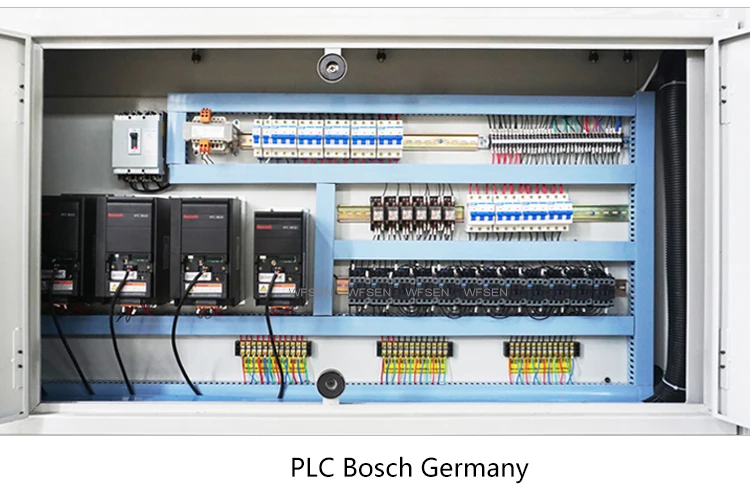

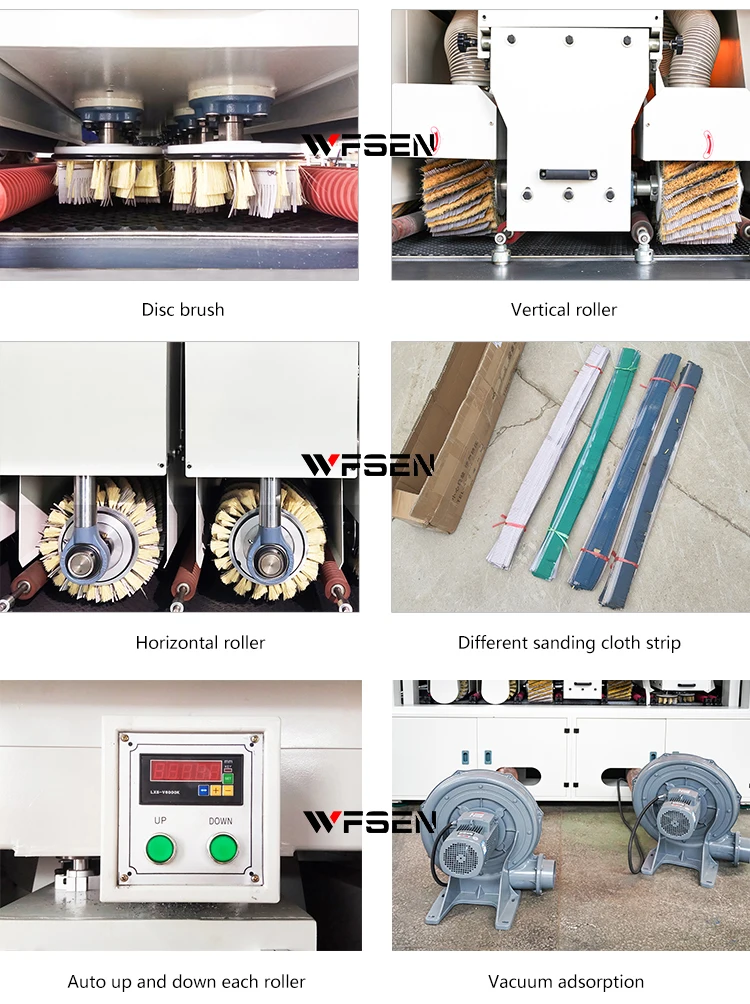

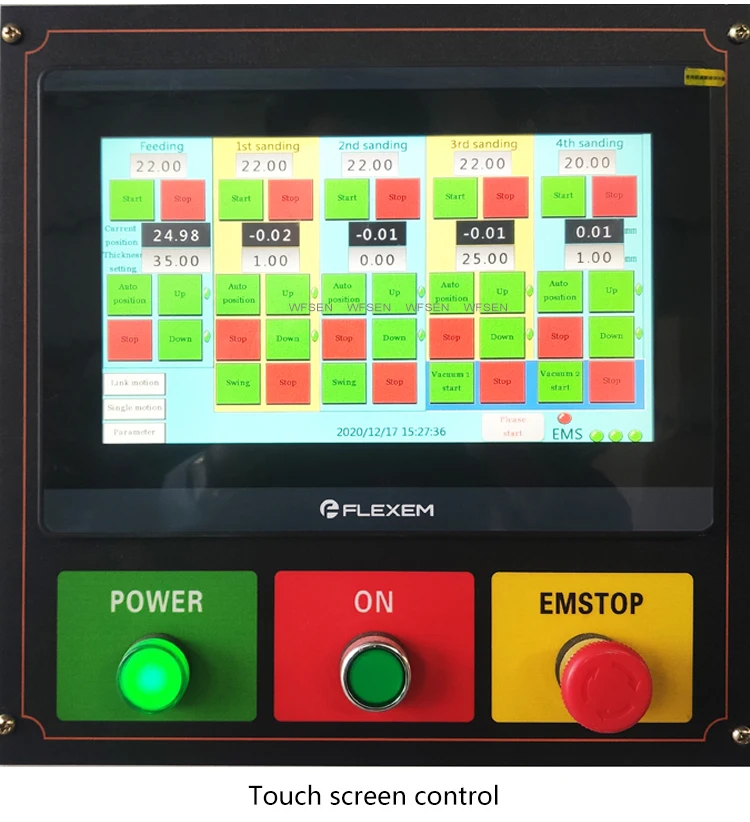

What the machine is built from: FLEXEM touch screen, Bosch PLC cabinet, and the three roller types with their brush and cloth-strip media.
Materials and applications

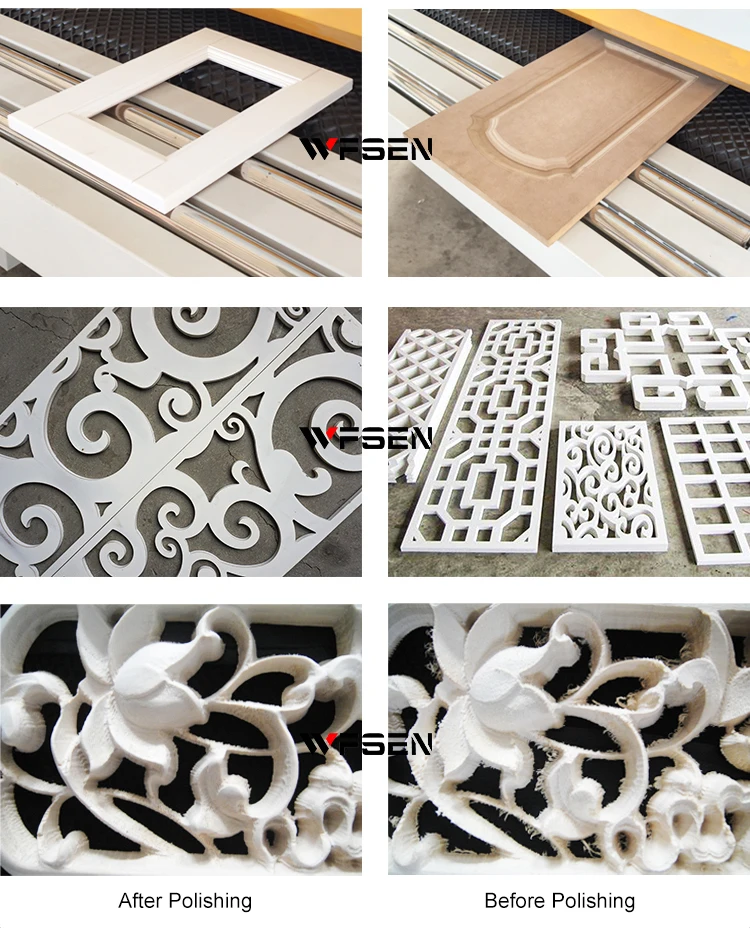

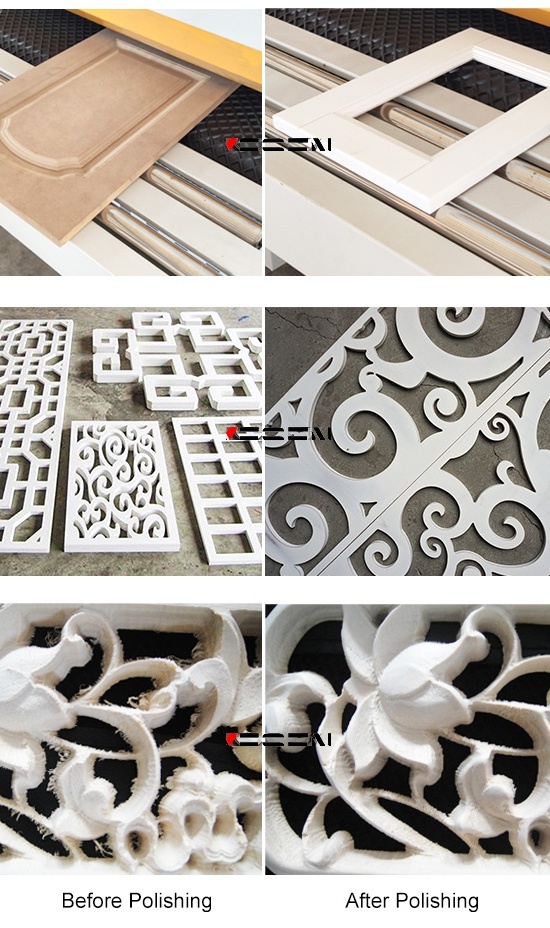

Door frames, raised panels and carved MDF, shown before and after polishing.
Packing and shipping
Machines leave the Qingdao workshop in wooden crates, loaded by forklift.
Service, warranty and delivery
Every machine is built and packed in Qingdao, Shandong, China, and carries a 2-year warranty — see the factory before you order.
Request a machine configuration for your door line — tell us your panel thickness and profile.
Get the SK1300-6S specification sheet and pricing — ask for the SK1300-6S quotation.
