- MJ2800 CNC beam saw for panel furniture production — cuts stacked panels up to 2800 mm wide and 60 mm thick.
- Suitable for plywood, MDF, particle board and laminated panels; cutting size customizable to 3000 / 3300 / 3600 / 3800 mm.
- We provide delivery within 6-15 days, good service, and a 2-year warranty.
- Equipped with a 7.5kW main motor, this CNC Beam Saw stands out as high-performance Woodworking Machinery, supporting 60mm stack cutting for maximum efficiency.

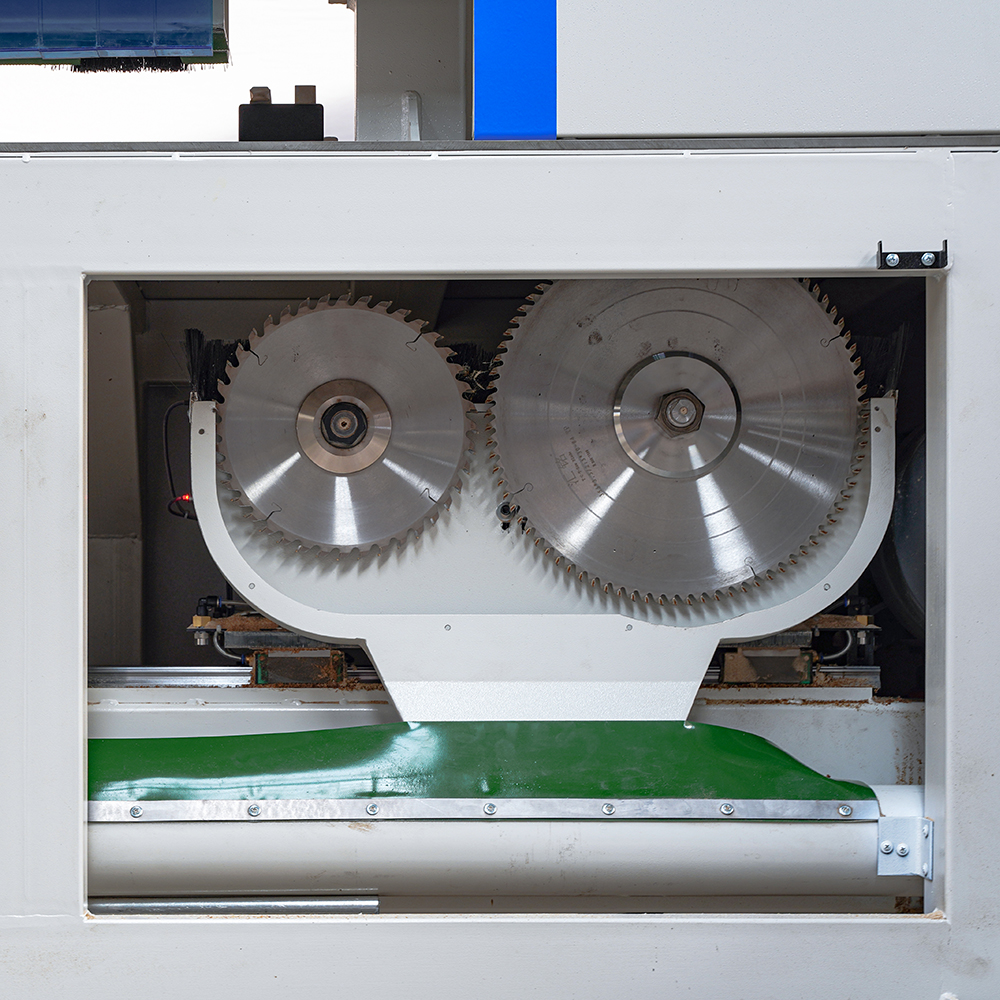

- A professional Furniture Making Machine with a dual-blade Precision Saw design, featuring scoring blades to ensure clean, chip-free cuts on laminated boards.
- An advanced computer control system with automatic cutting and an optimized cutting plan — the operator loads the stack and the machine runs the cut sequence.
- A reliable Electronic Beam Saw with a 2-year warranty and a stable 1700kg frame, built as a durable Industrial Panel Saw for years of precision work.

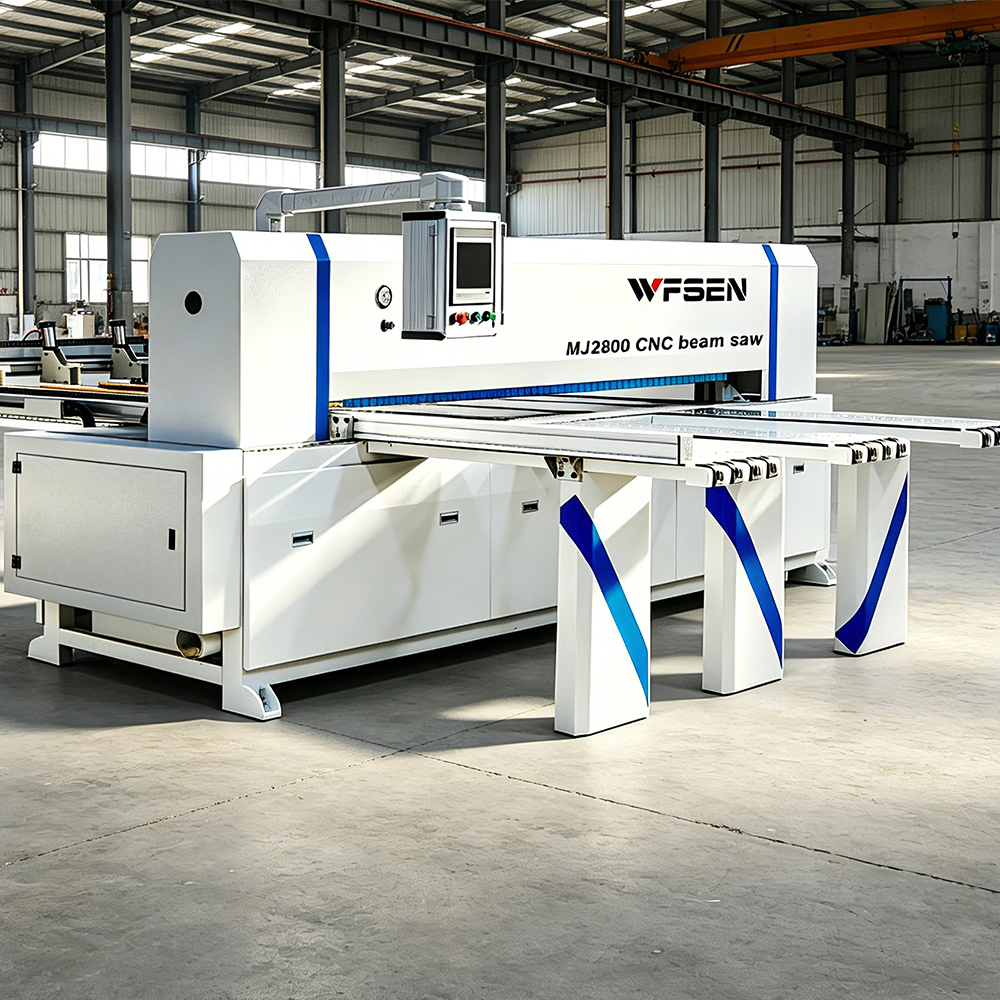

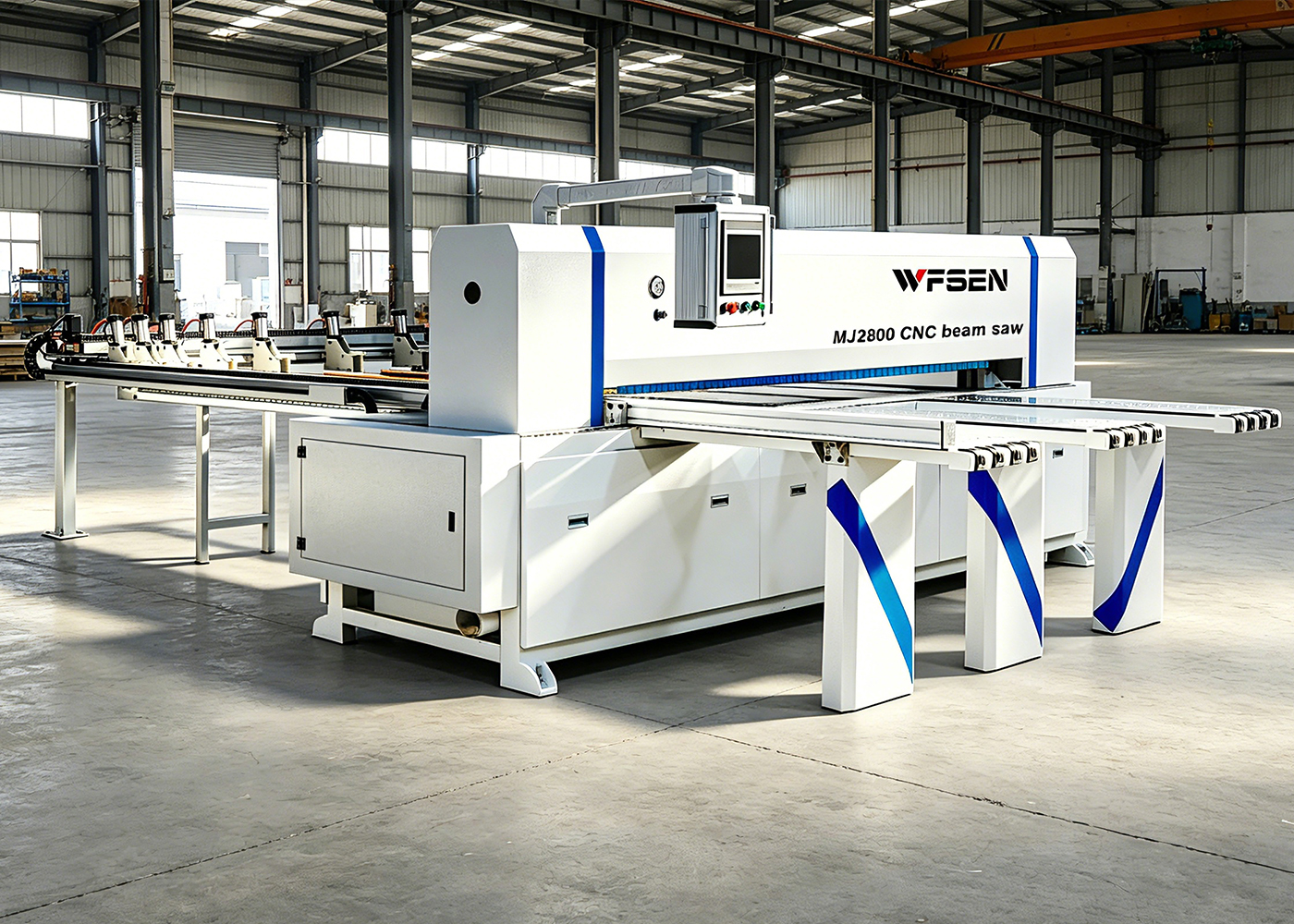

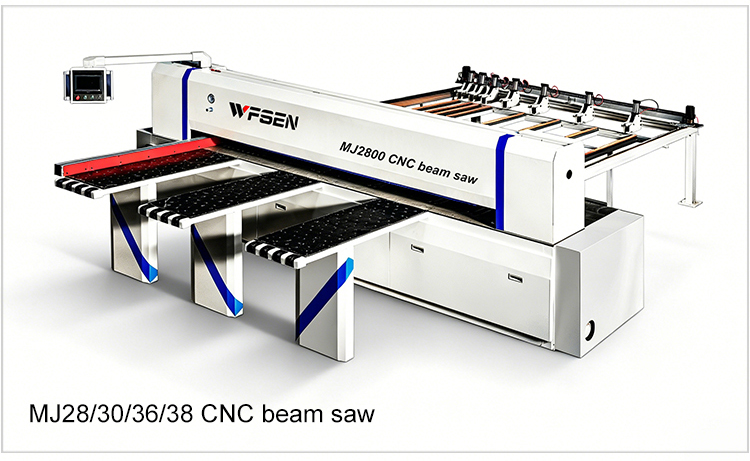

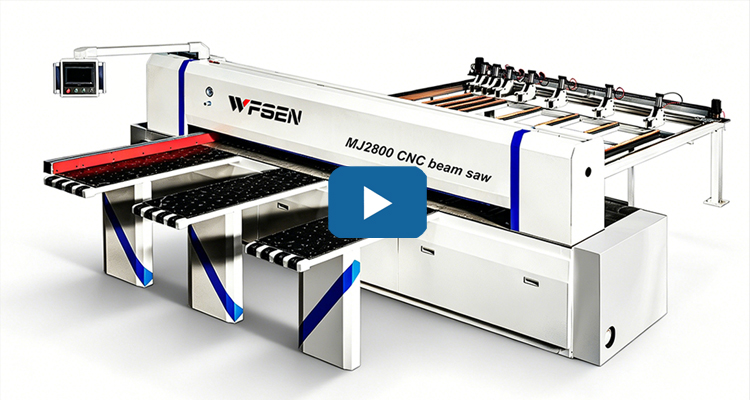

MJ2800 CNC beam saw
Very cheaper price: 9000 USD; High-precision cutting ±0.2 mm; Servo motor;
Customized cutting size, such as 3000/3300/3600/3800 mm; Double saw blades, 7.5+1.5kw.
——— Technical Parameter
| Model | MJ2800 CNC beam saw | Main saw blade diameter | Φ355mm | |
| Max. cutting width | 2800mm | Small saw blade diameter | Φ250mm | |
| Max. cutting thickness | 60mm | servo motor | 0.75kw*3 | |
| Main saw motor | 7.5kw | Overall dimension | 4700*4660*1700mm | |
| Small saw motor | 1.5kw | Weight | 1700kg |

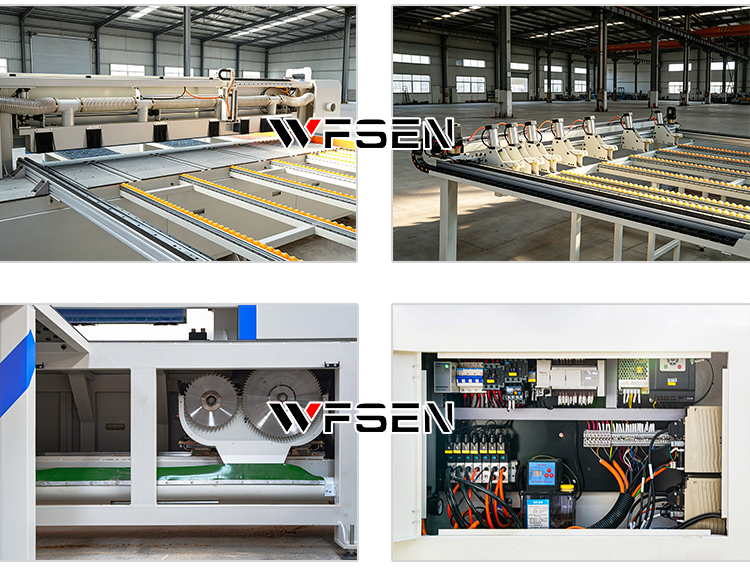

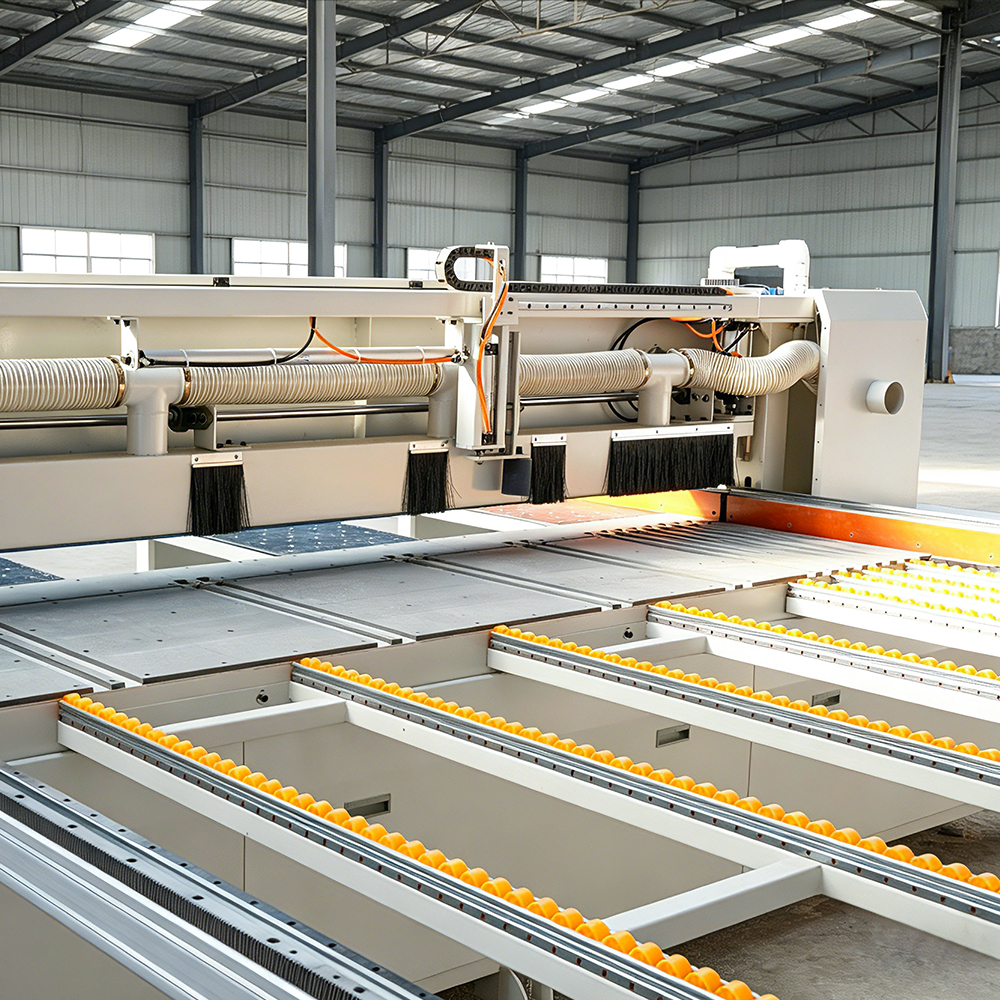

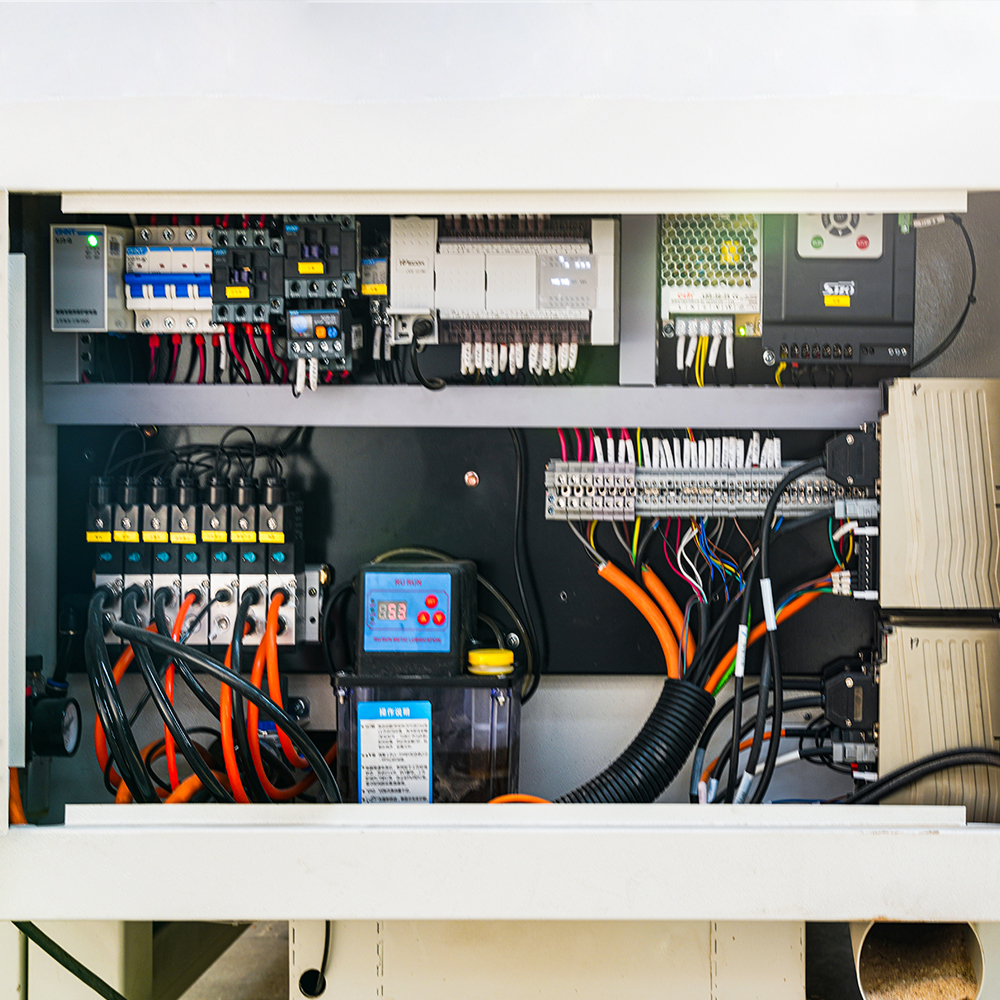

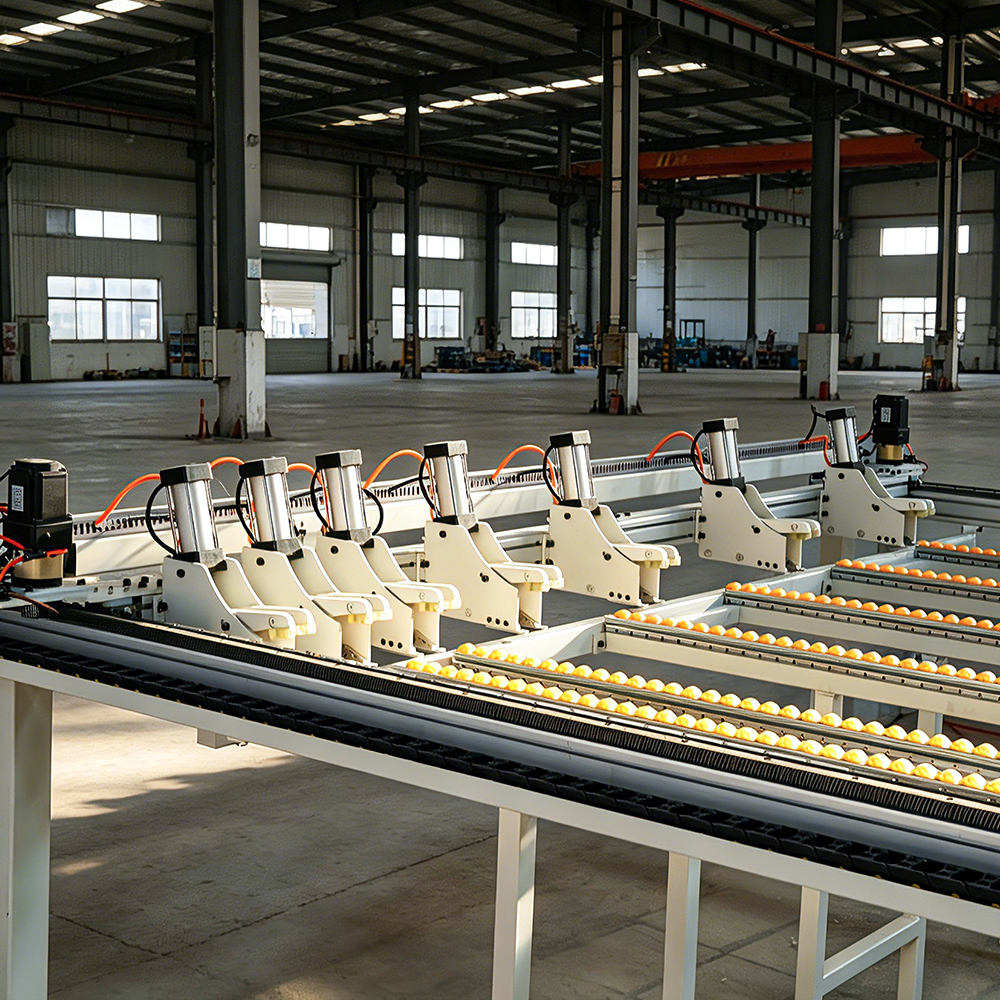

——— Parts show

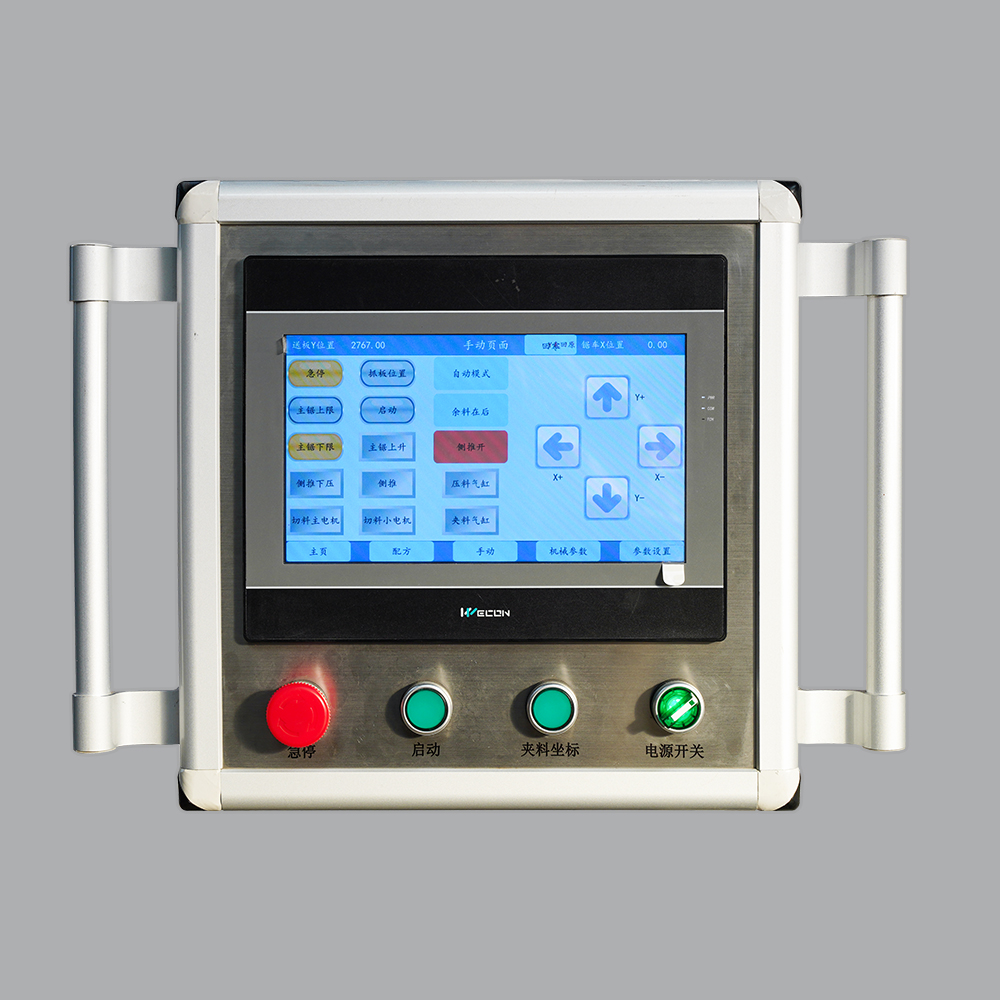

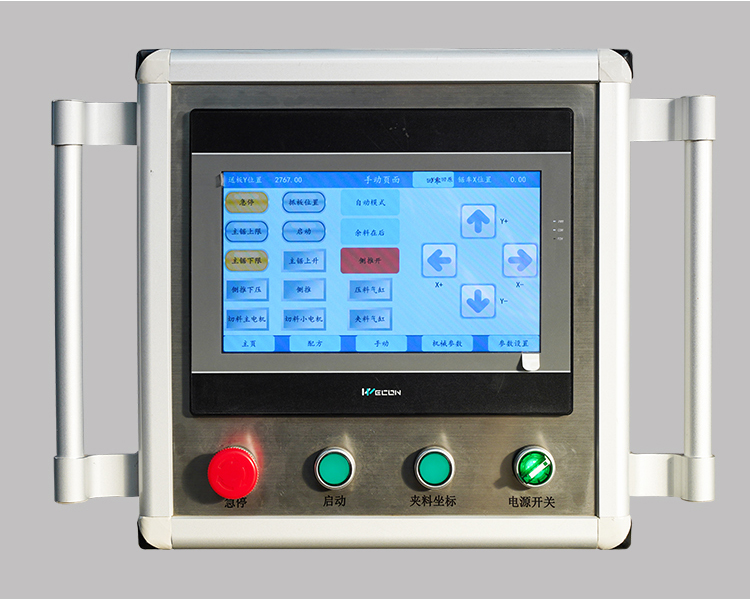

——— Control system
